Plugin Sidebar Edit

Overview Overview

How to add a sidebar to your plugin. A sidebar is the region to the far right of the editor. Your plugin can add an additional icon next to the InspectorControls (gear icon) that can be expanded.

Example sidebar

Note: this tutorial covers a custom sidebar, if you are looking to add controls to the sidebar see the Block Toolbar and Settings Sidebar

Top ↑

Before you start Before you start

The tutorial assumes you have an existing plugin setup and are ready to add PHP and JavaScript code. Please, refer to Getting started with JavaScript tutorial for an introduction to WordPress plugins and how to use JavaScript to extend the block editor.

Top ↑

Step-by-step guide Step-by-step guide

Top ↑

Step 1: Get a Sidebar up and Running Step 1: Get a Sidebar up and Running

The first step is to tell the editor that there is a new plugin that will have its own sidebar. Use the registerPlugin, PluginSidebar, and createElement utilities provided by the @wordpress/plugins, @wordpress/edit-post, and @wordpress/element packages, respectively.

Add the following code to a JavaScript file called plugin-sidebar.js and save it within your plugin’s directory:

( function ( wp ) {
    var registerPlugin = wp.plugins.registerPlugin;
    var PluginSidebar = wp.editPost.PluginSidebar;
    var el = wp.element.createElement;

    registerPlugin( 'my-plugin-sidebar', {
        render: function () {
            return el(
                PluginSidebar,
                {
                    name: 'my-plugin-sidebar',
                    icon: 'admin-post',
                    title: 'My plugin sidebar',
                },
                'Meta field'
            );
        },
    } );
} )( window.wp );

For this code to work, those utilities need to be available in the browser, so you must specify wp-plugins, wp-edit-post, and wp-element as dependencies of your script.

Here is the PHP code to register your script and specify the dependencies:

<?php

/*
Plugin Name: Sidebar plugin
*/

function sidebar_plugin_register() {
    wp_register_script(
        'plugin-sidebar-js',
        plugins_url( 'plugin-sidebar.js', __FILE__ ),
        array( 'wp-plugins', 'wp-edit-post', 'wp-element' )
    );
}
add_action( 'init', 'sidebar_plugin_register' );

function sidebar_plugin_script_enqueue() {
    wp_enqueue_script( 'plugin-sidebar-js' );
}
add_action( 'enqueue_block_editor_assets', 'sidebar_plugin_script_enqueue' );

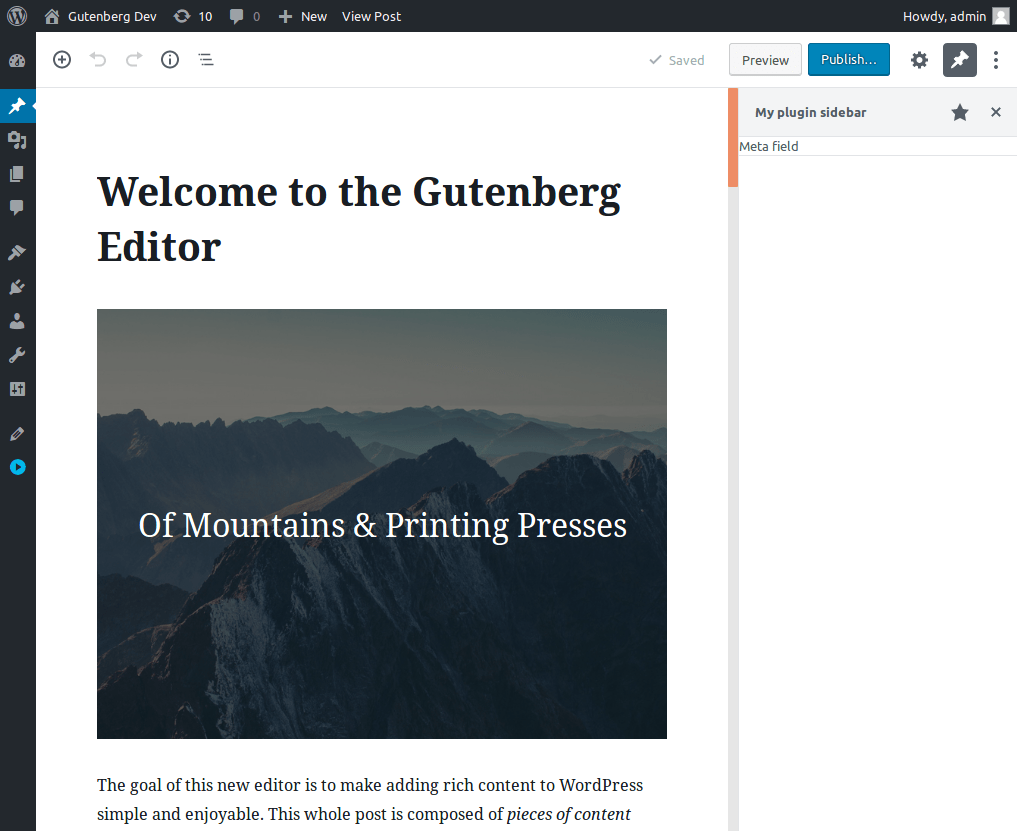

After installing and activating this plugin, there is a new icon resembling a tack in the top-right of the editor. Upon clicking it, the plugin’s sidebar will be opened:

Sidebar Up and Running

Top ↑

Step 2: Tweak the sidebar style and add controls Step 2: Tweak the sidebar style and add controls

After the sidebar is up and running, the next step is to fill it up with the necessary components and basic styling.

To visualize and edit the meta field value you’ll use an input component. The @wordpress/components package contains many components available for you to reuse, and, specifically, the TextControl is aimed at creating an input field:

( function ( wp ) {
    var registerPlugin = wp.plugins.registerPlugin;
    var PluginSidebar = wp.editPost.PluginSidebar;
    var el = wp.element.createElement;
    var TextControl = wp.components.TextControl;

    registerPlugin( 'my-plugin-sidebar', {
        render: function () {
            return el(
                PluginSidebar,
                {
                    name: 'my-plugin-sidebar',
                    icon: 'admin-post',
                    title: 'My plugin sidebar',
                },
                el(
                    'div',
                    { className: 'plugin-sidebar-content' },
                    el( TextControl, {
                        label: 'Meta Block Field',
                        value: 'Initial value',
                        onChange: function ( content ) {
                            console.log( 'content changed to ', content );
                        },
                    } )
                )
            );
        },
    } );
} )( window.wp );

Update the plugin-sidebar.js with this new code. Notice that it uses a new utility called wp.components from the @wordpress/components package. Be sure to add wp-components to the dependencies in the wp_register_script function in the PHP file.

The code introduces:

  • a CSS class plugin-sidebar-content to the div element to target styles,
  • a TextControl component instead of the plain 'Meta field' text.

With the new CSS class available you can add a little style. Create a new file in your plugin directory called plugin-sidebar.css with the following to give some padding:

.plugin-sidebar-content {
    padding: 16px;
}

Register the script and enqueue it to load with enqueue_block_editor_assets alongside the JavaScript file.

After those changes, the PHP code will look like this:

<?php

/*
Plugin Name: Sidebar example
*/

function sidebar_plugin_register() {
    wp_register_script(
        'plugin-sidebar-js',
        plugins_url( 'plugin-sidebar.js', __FILE__ ),
        array(
            'wp-plugins',
            'wp-edit-post',
            'wp-element',
            'wp-components'
        )
    );
    wp_register_style(
        'plugin-sidebar-css',
        plugins_url( 'plugin-sidebar.css', __FILE__ )
    );
}
add_action( 'init', 'sidebar_plugin_register' );

function sidebar_plugin_script_enqueue() {
    wp_enqueue_script( 'plugin-sidebar-js' );
    wp_enqueue_style( 'plugin-sidebar-css' );
}
add_action( 'enqueue_block_editor_assets', 'sidebar_plugin_script_enqueue' );

Reload the editor and open the sidebar:

Sidebar with style and controls

This code doesn’t let users store or retrieve data just yet, so the next steps will focus on how to connect it to the meta block field.

Top ↑

Step 3: Register the Meta Field Step 3: Register the Meta Field

To work with fields in the post_meta table, use the register_post_meta. function to create a new field called sidebar_plugin_meta_block_field.

Note: this field needs to be available to the REST API because that’s how the block editor access data.

Add the PHP code in your plugins init callback function:

register_post_meta( 'post', 'sidebar_plugin_meta_block_field', array(
    'show_in_rest' => true,
    'single' => true,
    'type' => 'string',
) );

To confirm, query the block editor store to see the field is loaded. After implementing, reload the editor page and open your browser’s developer console. Use this JavaScript snippet in the console to confirm:

wp.data.select( 'core/editor' ).getCurrentPost().meta;

The function will return an object containing the registered meta field you registered.

If the code returns undefined make sure your post type supports custom-fields. Either when registering the post or with add_post_type_support function.

Top ↑

Step 4: Initialize the Input Control Step 4: Initialize the Input Control

With the field available in the editor store, it can now be surfaced to the UI. We extract the input control to a function to keep the code clean as we add functionality.

( function ( wp ) {
    var registerPlugin = wp.plugins.registerPlugin;
    var PluginSidebar = wp.editPost.PluginSidebar;
    var el = wp.element.createElement;
    var TextControl = wp.components.TextControl;

    var MetaBlockField = function () {
        return el( TextControl, {
            label: 'Meta Block Field',
            value: 'Initial value',
            onChange: function ( content ) {
                console.log( 'content changed to ', content );
            },
        } );
    };

    registerPlugin( 'my-plugin-sidebar', {
        render: function () {
            return el(
                PluginSidebar,
                {
                    name: 'my-plugin-sidebar',
                    icon: 'admin-post',
                    title: 'My plugin sidebar',
                },
                el(
                    'div',
                    { className: 'plugin-sidebar-content' },
                    el( MetaBlockField )
                )
            );
        },
    } );
} )( window.wp );

We want to initialize the value in the MetaBlockField component with the value of sidebar_plugin_meta_block_field, and keep it updated when that value changes.

The useSelect function is used to fetch data when the component loads and will update if the data changes. Here is the code update with useSelect:

( function ( wp ) {
    var registerPlugin = wp.plugins.registerPlugin;
    var PluginSidebar = wp.editPost.PluginSidebar;
    var el = wp.element.createElement;
    var Text = wp.components.TextControl;
    var useSelect = wp.data.useSelect;

    var MetaBlockField = function () {
        var metaFieldValue = useSelect( function ( select ) {
            return select( 'core/editor' ).getEditedPostAttribute(
                'meta'
            )[ 'sidebar_plugin_meta_block_field' ];
        }, [] );

        return el( Text, {
            label: 'Meta Block Field',
            value: metaFieldValue,
            onChange: function ( content ) {
                console.log( 'content has changed to ', content );
            },
        } );
    };

    registerPlugin( 'my-plugin-sidebar', {
        render: function () {
            return el(
                PluginSidebar,
                {
                    name: 'my-plugin-sidebar',
                    icon: 'admin-post',
                    title: 'My plugin sidebar',
                },
                el(
                    'div',
                    { className: 'plugin-sidebar-content' },
                    el( MetaBlockField )
                )
            );
        },
    } );
} )( window.wp );

The wp.data.useSelect function is from the @wordpress/data package, so wp-data needs to be added as a dependency in the wp_register_script function in PHP.

Note: The getEditedPostAttribute call is used to retrieve the most recent values of the post, including user editions that haven’t been yet saved.

Confirm it’s working by updating the code, reloading, and opening the sidebar. The input’s content is no longer Initial value but a void string. Users can’t type values yet, but you can check that the component is updated if the value in the store changes. Open the browser’s console, execute

wp.data
    .dispatch( 'core/editor' )
    .editPost( { meta: { sidebar_plugin_meta_block_field: 'hello world!' } } );

You can observe the content changing in the input component.

Top ↑

Step 5: Update the Meta Field When the Input’s Content Changes Step 5: Update the Meta Field When the Input’s Content Changes

The last step is to update the meta field when the input content changes.
The useDispatch function takes a store name as its only argument and returns methods that you can use to update the store, in this case we’ll use editPost

( function ( wp ) {
    var registerPlugin = wp.plugins.registerPlugin;
    var PluginSidebar = wp.editPost.PluginSidebar;
    var el = wp.element.createElement;
    var TextControl = wp.components.TextControl;
    var useSelect = wp.data.useSelect;
    var useDispatch = wp.data.useDispatch;

    var MetaBlockField = function ( props ) {
        var metaFieldValue = useSelect( function ( select ) {
            return select( 'core/editor' ).getEditedPostAttribute(
                'meta'
            )[ 'sidebar_plugin_meta_block_field' ];
        }, [] );

        var editPost = useDispatch( 'core/editor' ).editPost;

        return el( TextControl, {
            label: 'Meta Block Field',
            value: metaFieldValue,
            onChange: function ( content ) {
                editPost( {
                    meta: { sidebar_plugin_meta_block_field: content },
                } );
            },
        } );
    };

    registerPlugin( 'my-plugin-sidebar', {
        render: function () {
            return el(
                PluginSidebar,
                {
                    name: 'my-plugin-sidebar',
                    icon: 'admin-post',
                    title: 'My plugin sidebar',
                },
                el(
                    'div',
                    { className: 'plugin-sidebar-content' },
                    el( MetaBlockField )
                )
            );
        },
    } );
} )( window.wp );

After the update, when the user types, the input control calls editPost and updates the editor store on each keystroke.

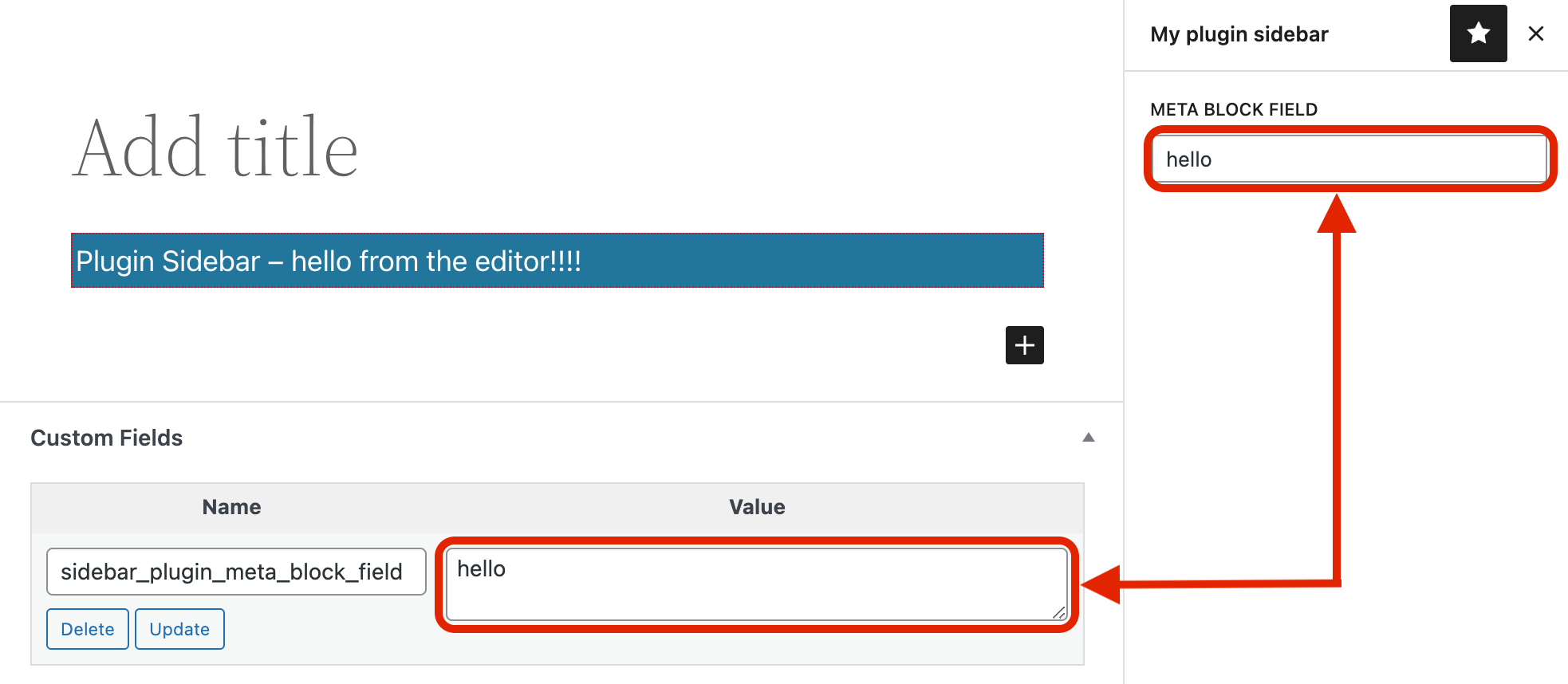

Update the JavaScript, load the sidebar, and type in the input field. You can confirm it is saved by typing something in the input control and executing the JavaScript snippet in your browser’s development console:

wp.data.select( 'core/editor' ).getEditedPostAttribute( 'meta' )[
    'sidebar_plugin_meta_block_field'
];

The message displayed should be what you typed in the input.

When saving a post, you can confirm it is stored properly in the database by reloading after a save and confirming the input control is initialized with the last value you typed.

Top ↑

Additional resources Additional resources

Documentation for working with the @wordpress/data package.

Functions used in this guide:

Top ↑

Conclusion Conclusion

You now have a custom sidebar that you can use to update post_meta content.

A complete example is available, download the plugin-sidebar example from the gutenberg-examples repository.
